精工造物,精準賦能：愛普生FA-118T微型晶振的行業價值,在物聯網、智能穿戴與無線通信技術飛速迭代的當下,電子設備持續向著微型化、高精度、高穩定性方向升級.晶振作為電子產品的“時鐘心臟”,其尺寸、精度與環境適配性,直接決定了設備的運行穩定性與使用體驗.EPSON愛普生晶振深耕晶振領域多年,旗下FA-118T微型無源晶振憑借極致的尺寸設計、優異的電氣性能,成為手機藍牙、無線頻段、MCU時鐘等場景的核心元器件,廣泛適配消費電子與工業小型通信設備.

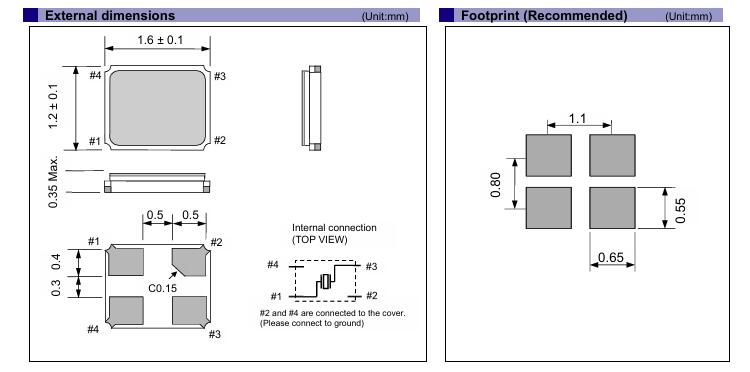

極致微型化的封裝設計,是FA-118T晶振最核心的亮點之一.該款晶振采用1612規格封裝,外部尺寸僅1.6×1.2×0.35毫米,超薄緊湊的體積完美適配當下輕量化、微型化的設備設計趨勢.相較于傳統移動設備晶振,其大幅節省電路板占用空間,能夠滿足可穿戴設備、微型通信模塊等空間受限產品的裝配需求,為電子產品輕薄化創新提供了核心硬件支撐.同時,產品采用基頻泛音階設計,無需額外變頻結構,電路適配更簡單,降低了設備研發與生產成本.
X1E0002510190手機藍牙晶振,MPU時鐘晶振,頻段無線晶振

在核心性能層面,FA-118T晶振兼具高精度與強穩定性,適配多場景工況.其標稱頻率覆蓋24MHz至54MHz,主流常用40MHz頻點可精準匹配藍牙、W-LAN、ISM頻段無線通信及MPU時鐘工作需求.常溫25℃環境下,產品標準頻率公差可達±10×10,貼片石英晶振精準度滿足民用及常規工業設備的時鐘校準要求.針對復雜溫差環境,它擁有出色的溫漂控制能力,在-20℃至75℃常規工況、-30℃至85℃寬溫工況下均能保持穩定頻率輸出,即便在-40℃至105℃的極端溫差環境中,性能衰減也處于可控范圍,環境適配性極強.

此外,FA-118T晶振SMD晶振的等效串聯電阻參數科學合理,性能適配性極強.其電阻值隨頻率區間動態優化,40MHz至54MHz高頻區間最大等效串聯電阻僅60Ω,電阻損耗極低,有效降低設備功耗、提升信號傳輸穩定性.用戶常用的40M、12PF、10PP規格版本,參數精準、適配性廣,是無線通信設備時鐘配置的優選型號.
X1E0002510190手機藍牙晶振,MPU時鐘晶振,頻段無線晶振

依托尺寸與性能優勢,FA-118T晶振應用場景十分廣泛.進口晶振民用領域可用于手機藍牙模塊、無線網絡設備、智能穿戴設備；工業領域可適配小型通信模塊、MCU單片機時鐘系統,兼顧消費電子的性價比需求與工業設備的穩定性要求.作為壹兆電子重點供應的核心元器件,該款愛普生晶振憑借成熟工藝、穩定品質,成為無線通信與微型智能設備不可或缺的核心配件,持續為電子設備的精準穩定運行保駕護航.
X1E0002510190手機藍牙晶振,MPU時鐘晶振,頻段無線晶振

編碼	LxWxH/尺寸	Model/型號	Frequency/頻率	CL Value/負載	Freq.tol./頻率 @+25°C	ESR[MAX] 等效串聯電阻
X1E0002510009	1.6 x 1.2 x 0.35mm	FA-118T	27.120000 MHz	10 pF	+/-30 ppm	-20 to +75 °C
X1E0002510011	1.6 x 1.2 x 0.35mm	FA-118T	26.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
X1E0002510013	1.6 x 1.2 x 0.35mm	FA-118T	27.120000 MHz	10 pF	+/-50 ppm	-20 to +85 °C
X1E0002510014	1.6 x 1.2 x 0.35mm	FA-118T	26.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
X1E0002510016	1.6 x 1.2 x 0.35mm	FA-118T	37.400000 MHz	16 pF	+/-10 ppm	-20 to +85 °C
X1E0002510017	1.6 x 1.2 x 0.35mm	FA-118T	37.400000 MHz	16 pF	+/-10 ppm	-20 to +70 °C
X1E0002510031	1.6 x 1.2 x 0.35mm	FA-118T	37.400000 MHz	16 pF	+/-7 ppm	-30 to +85 °C
X1E0002510032	1.6 x 1.2 x 0.35mm	FA-118T	40.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
X1E0002510034	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	9 pF	+/-30 ppm	-20 to +75 °C
X1E0002510035	1.6 x 1.2 x 0.35mm	FA-118T	30.000000 MHz	8 pF	+/-20 ppm	-20 to +75 °C
X1E0002510046	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	12 pF	+/-10 ppm	-20 to +75 °C
X1E0002510050	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
X1E0002510056	1.6 x 1.2 x 0.35mm	FA-118T	52.000000 MHz	9 pF	+/-15 ppm	-20 to +75 °C
X1E0002510057	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	7 pF	+/-30 ppm	-20 to +75 °C
X1E0002510058	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	8 pF	+/-15 ppm	-30 to +85 °C
X1E0002510059	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
X1E0002510060	1.6 x 1.2 x 0.35mm	FA-118T	48.000000 MHz	10 pF	+/-30 ppm	-20 to +75 °C
X1E0002510064	1.6 x 1.2 x 0.35mm	FA-118T	26.000000 MHz	12 pF	+/-10 ppm	-20 to +75 °C
X1E0002510068	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	8 pF	+/-30 ppm	-20 to +75 °C
X1E0002510069	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	10 pF	+/-30 ppm	-20 to +75 °C
X1E0002510071	1.6 x 1.2 x 0.35mm	FA-118T	40.000000 MHz	12 pF	+/-8 ppm	-30 to +85 °C
X1E0002510075	1.6 x 1.2 x 0.35mm	FA-118T	26.000000 MHz	8 pF	+/-10 ppm	-30 to +85 °C
X1E0002510077	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
X1E0002510078	1.6 x 1.2 x 0.35mm	FA-118T	40.000000 MHz	7 pF	+/-10 ppm	-20 to +75 °C
X1E0002510079	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
X1E0002510080	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	6 pF	+/-10 ppm	-20 to +75 °C
X1E0002510086	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	8 pF	+/-20 ppm	-20 to +75 °C
X1E0002510092	1.6 x 1.2 x 0.35mm	FA-118T	27.000000 MHz	10 pF	+/-30 ppm	-20 to +75 °C
X1E0002510093	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	8 pF	+/-30 ppm	-20 to +70 °C
X1E0002510100	1.6 x 1.2 x 0.35mm	FA-118T	27.120000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
X1E0002510102	1.6 x 1.2 x 0.35mm	FA-118T 晶振廠家	50.000000 MHz	8 pF	+/-30 ppm	-40 to +85 °C
X1E0002510104	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	10 pF	+/-20 ppm	-40 to +85 °C
X1E0002510110	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	12.5 pF	+/-30 ppm	-20 to +75 °C
X1E0002510111	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	10 pF	+/-50 ppm	-20 to +75 °C
X1E0002510113	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	8 pF	+/-10 ppm	-30 to +85 °C
X1E0002510121	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	8 pF	+/-10 ppm	-20 to +85 °C
X1E0002510123	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	9 pF	+/-10 ppm	-40 to +85 °C
X1E0002510126	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	7 pF	+/-30 ppm	-20 to +75 °C
X1E0002510136	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	8 pF	+/-15 ppm	-20 to +105 °C
X1E0002510138	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	6 pF	+/-10 ppm	-20 to +70 °C
X1E0002510141	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	8 pF	+/-20 ppm	-40 to +85 °C
X1E0002510144	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	20 pF	+/-30 ppm	-20 to +75 °C
X1E0002510145	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	20 pF	+/-30 ppm	-20 to +75 °C
X1E0002510148	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
X1E0002510150	1.6 x 1.2 x 0.35mm	FA-118T	38.400000 MHz	20 pF	+/-10 ppm	-20 to +75 °C
X1E0002510152	1.6 x 1.2 x 0.35mm	FA-118T	48.000000 MHz	8 pF	+/-10 ppm	-40 to +85 °C
X1E0002510153	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	8 pF	+/-10 ppm	-40 to +85 °C
X1E0002510154	1.6 x 1.2 x 0.35mm	FA-118T	50.000000 MHz	12 pF	+/-30 ppm	-40 to +85 °C
X1E0002510155	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	9 pF	+/-30 ppm	-20 to +75 °C
X1E0002510157	1.6 x 1.2 x 0.35mm	FA-118T	26.000000 MHz	8 pF	+/-10 ppm	-40 to +85 °C
X1E0002510158	1.6 x 1.2 x 0.35mm	FA-118T	50.000000 MHz	12 pF	+/-10 ppm	-40 to +85 °C
X1E0002510159	1.6 x 1.2 x 0.35mm	FA-118T	48.000000 MHz	8 pF	+/-15 ppm	-40 to +85 °C
X1E0002510160	1.6 x 1.2 x 0.35mm	FA-118T	30.000000 MHz	4 pF	+/-70 ppm	-40 to +85 °C
X1E0002510161	1.6 x 1.2 x 0.35mm	FA-118T	37.400000 MHz	8 pF	+/-10 ppm	-30 to +85 °C
X1E0002510166	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	10 pF	+/-10 ppm	-30 to +85 °C
X1E0002510169	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	10 pF	+/-50 ppm	-40 to +85 °C
X1E0002510033	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	10 pF	+/-30 ppm	-20 to +75 °C
X1E0002510065	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
X1E0002510099	1.6 x 1.2 x 0.35mm	FA-118T	48.000000 MHz	6 pF	+/-30 ppm	-20 to +75 °C
X1E0002510134	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	8 pF	+/-10 ppm	-20 to +85 °C
X1E0002510190	1.6 x 1.2 x 0.35mm	FA-118T	40.000000 MHz	12 pF	+/-10 ppm	-30 to +85 °C
X1E0002510197	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	6 pF	+/-10 ppm	-20 to +75 °C
X1E0002510201	1.6 x 1.2 x 0.35mm	FA-118T	38.400000 MHz	8 pF	+/-10 ppm	-20 to +85 °C
X1E0002510212	1.6 x 1.2 x 0.35mm	FA-118T	40.000000 MHz	6 pF	+/-10 ppm	-40 to +85 °C
X1E0002510215	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	6 pF	+/-20 ppm	-40 to +85 °C
X1E0002510219	1.6 x 1.2 x 0.35mm	FA-118T	40.000000 MHz	10 pF	+/-10 ppm	-40 to +85 °C
